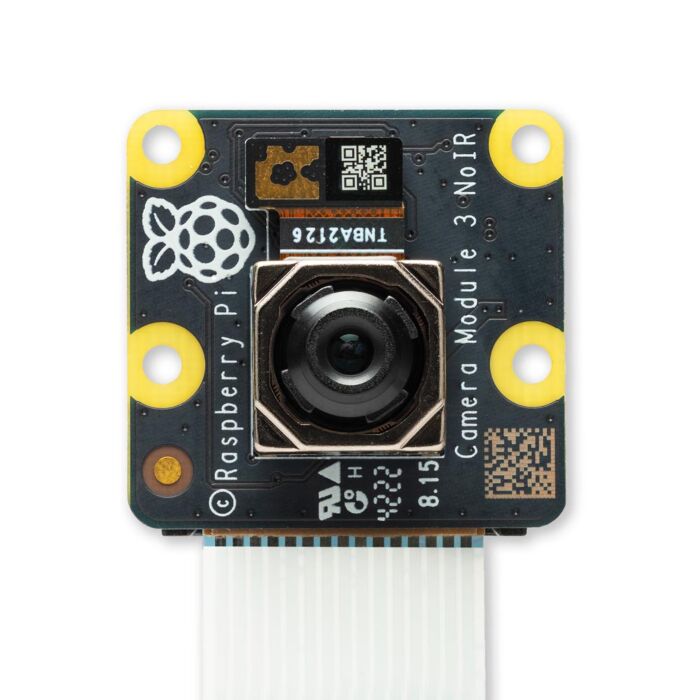

Raspberry Pi Camera Module 3 NoIR

Features

• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3 megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism

Specifications

• Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor

• High signal-to-noise ratio (SNR)

• Built-in 2D Dynamic Defect Pixel Correction (DPC)

• Phase Detection Autofocus (PDAF) for rapid autofocus

• QBC Re-mosaic function

• HDR mode (up to 3 megapixel output)

• CSI-2 serial data output

• 2-wire serial communication (supports I2C fast mode and fast mode plus)

• 2-wire serial control of focus mechanism

• Resolution: 11.9 megapixels

• Sensor size: 7.4mm sensor diagonal

• Pixel size: 1.4μm × 1.4μm

• Horizontal/vertical: 4608 × 2592 pixels

• Diagonal field of view: 75 degrees (Camera Module 3, Camera Module 3 NoIR)

• Common video modes: 1080p50, 720p100, 480p120

• Output: RAW10

• Dimensions: 25 × 24 × 11.5mm

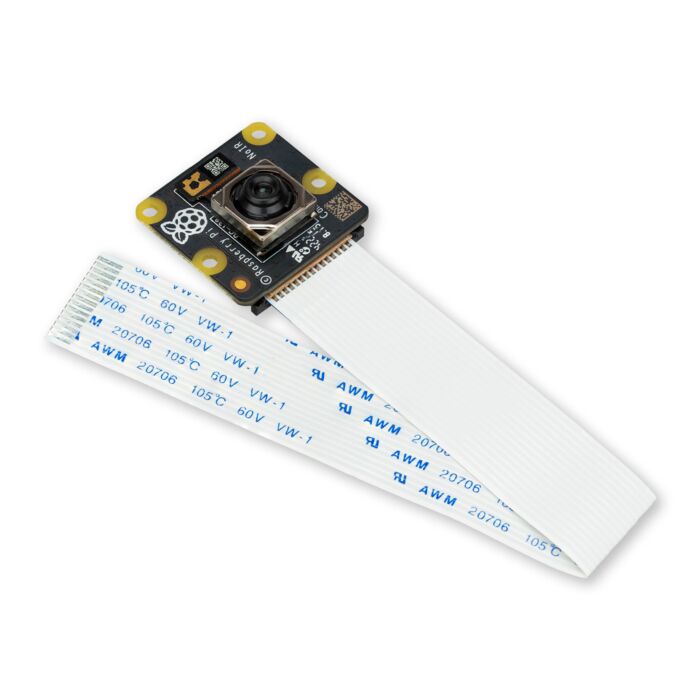

• Ribbon cable length: 200mm

• Cable connector: 15 × 1mm FPC
