Raspberry Pi HQ Camera
Raspberry Pi HQ Camera
NOTES:
1. Lens are not included with the Camera
2. Camera needs Lens to be usable
The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels compared to 8 megapixels) and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2 and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.
The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards using the latest software release from www.raspberrypi.org.
The package includes:

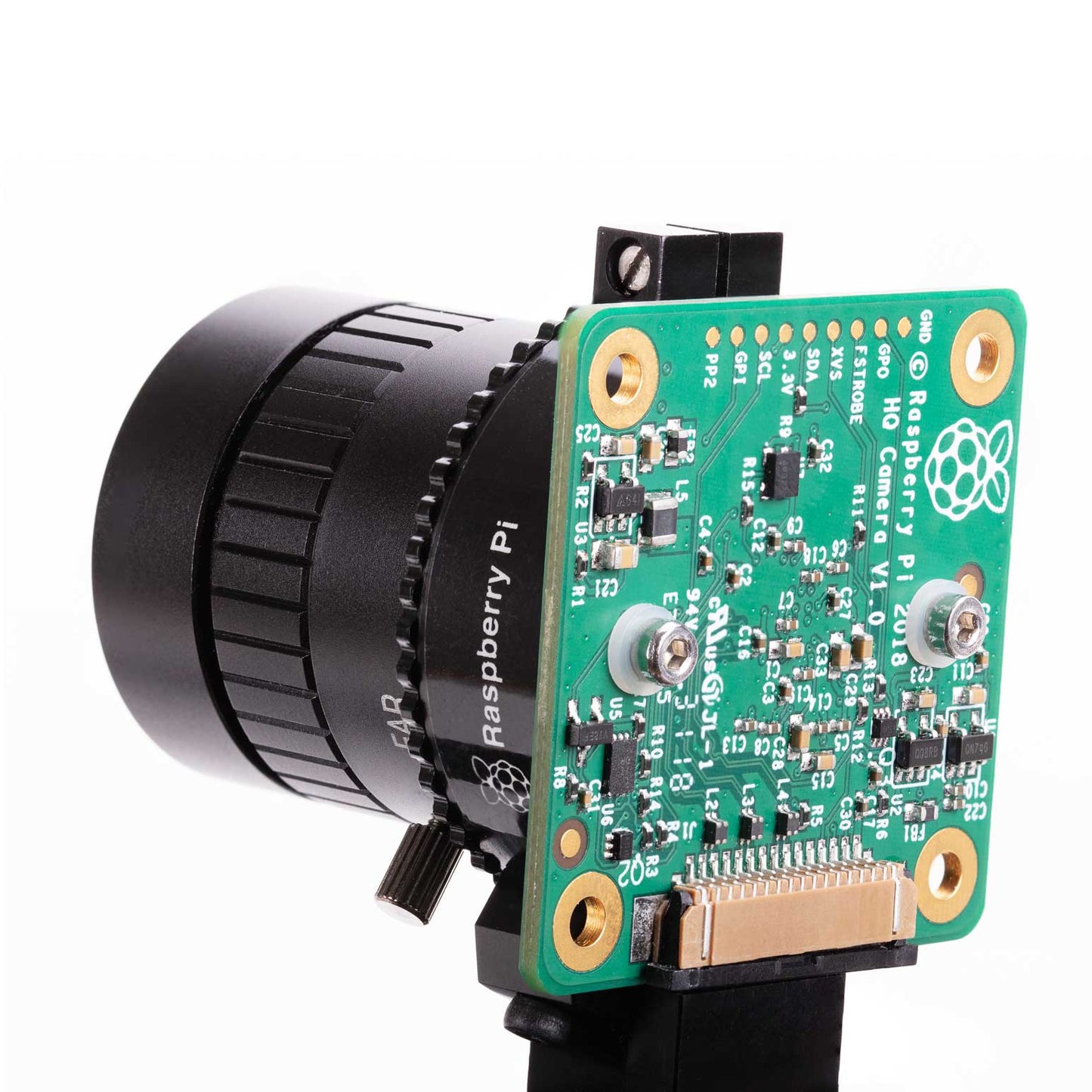

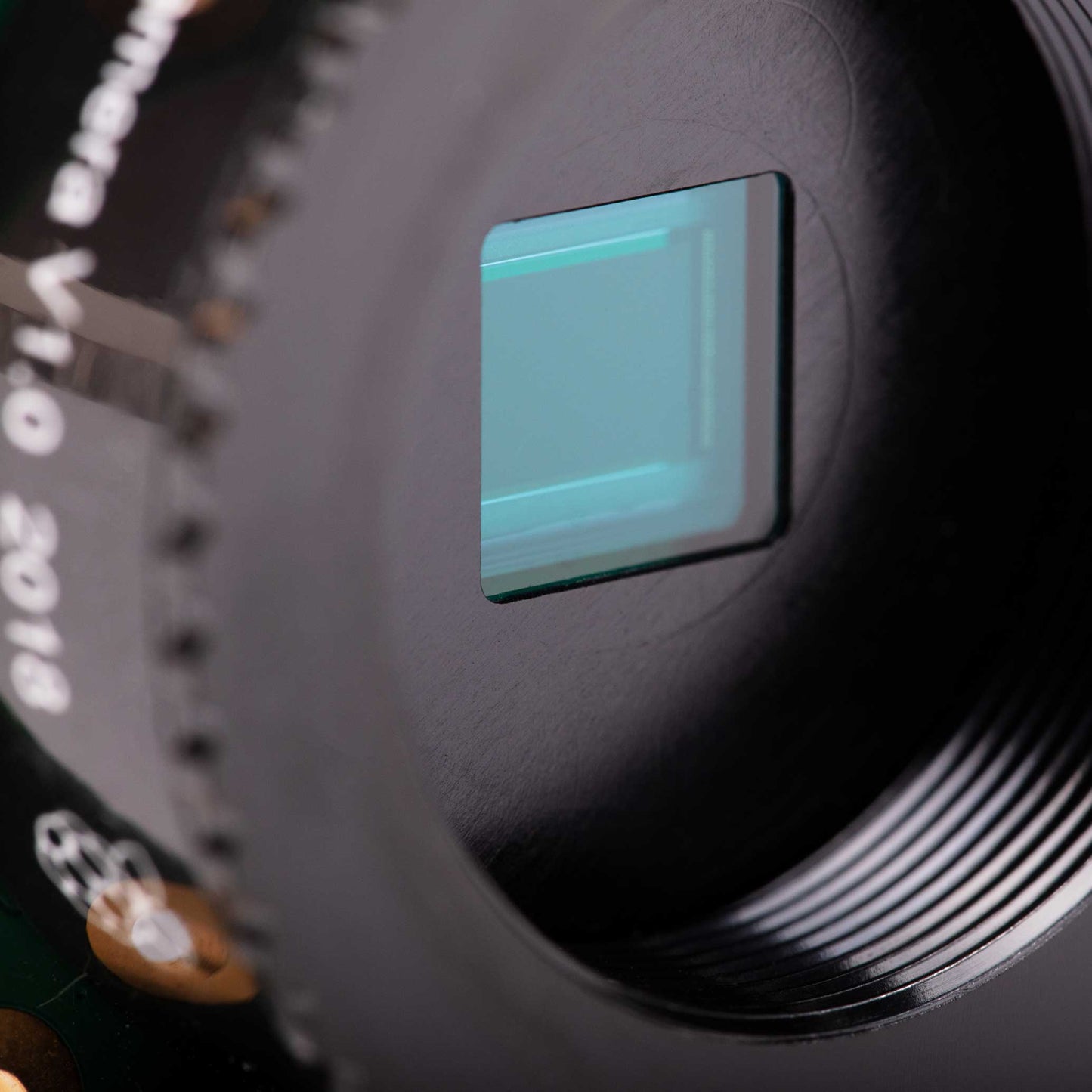

- Circuit board carrying a Sony IMX477 sensor

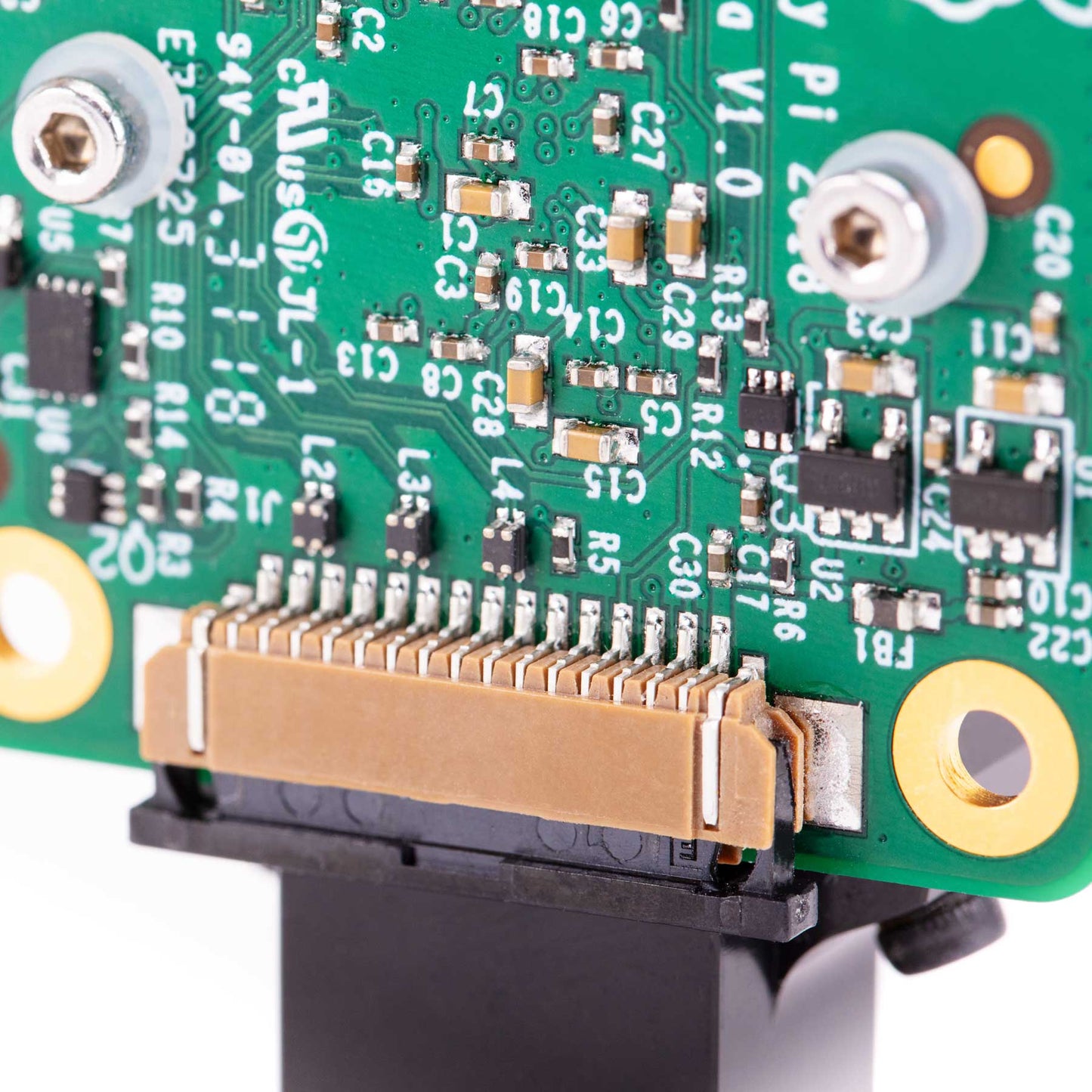

- FPC cable for connection to a Raspberry Pi computer

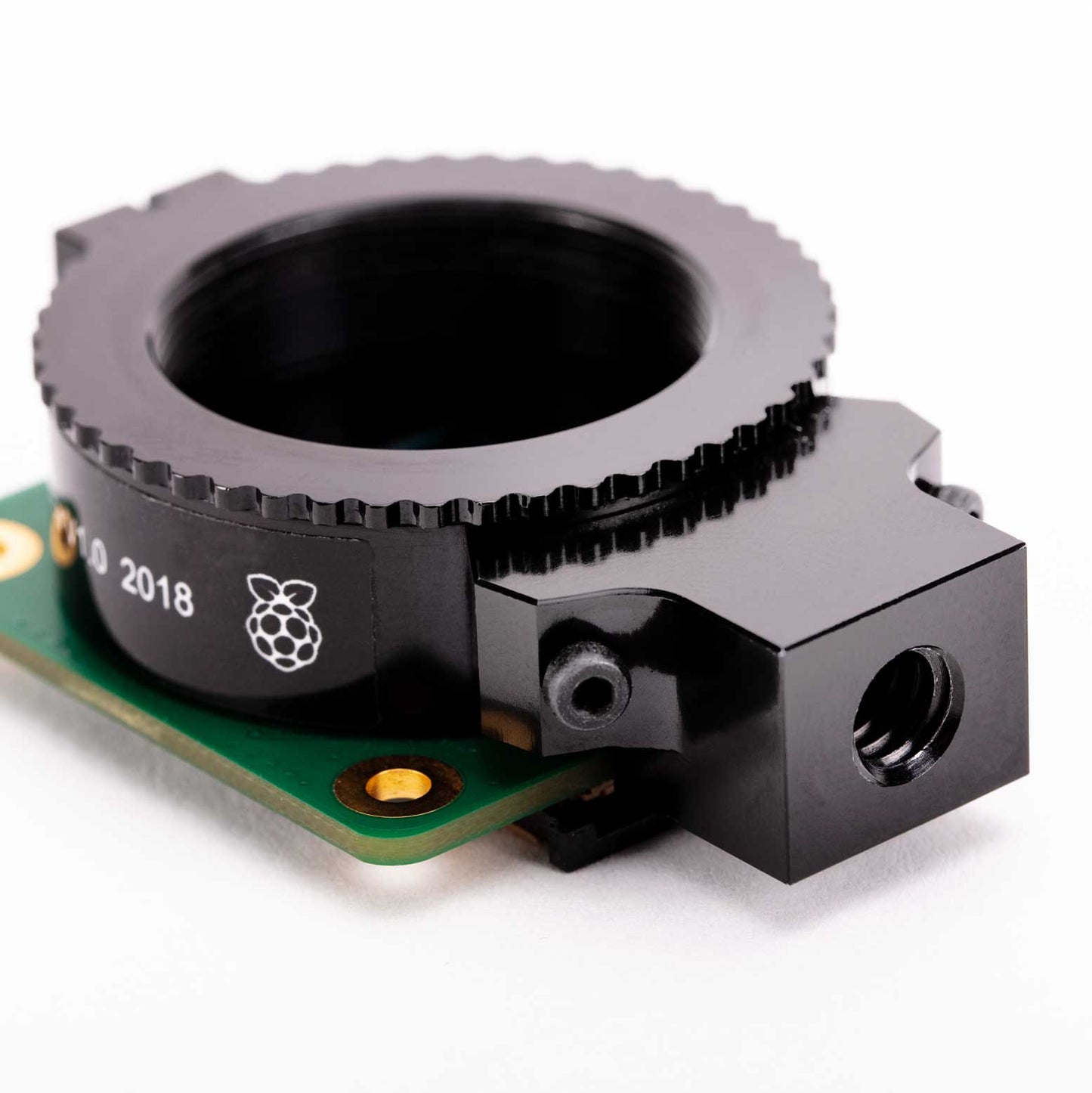

- Milled aluminium lens mount with integrated tripod mount
- Focus adjustment ring
- C- to CS-mount adapter.
Sensor: |
Sony IMX477R stacked |
Output: |
RAW12/10/8 |
Back Focus: | Adjustable (12.5 mm - 22.4 mm) |
Lens Standards: | C-mount CS-mount (C-CS adapter included) |
IR cut filter: | Integrated |
Ribbon Cable Length: | 200 mm |
Tripod Mount: | 1/4" - 20 |
Compliance: | FCC 47 CFR Part 15, Subpart B Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
Production Lifetime: | The Raspberry Pi High Quality Camera will remain in production until at least January 2026 |
