Raspberry Pi Foundation

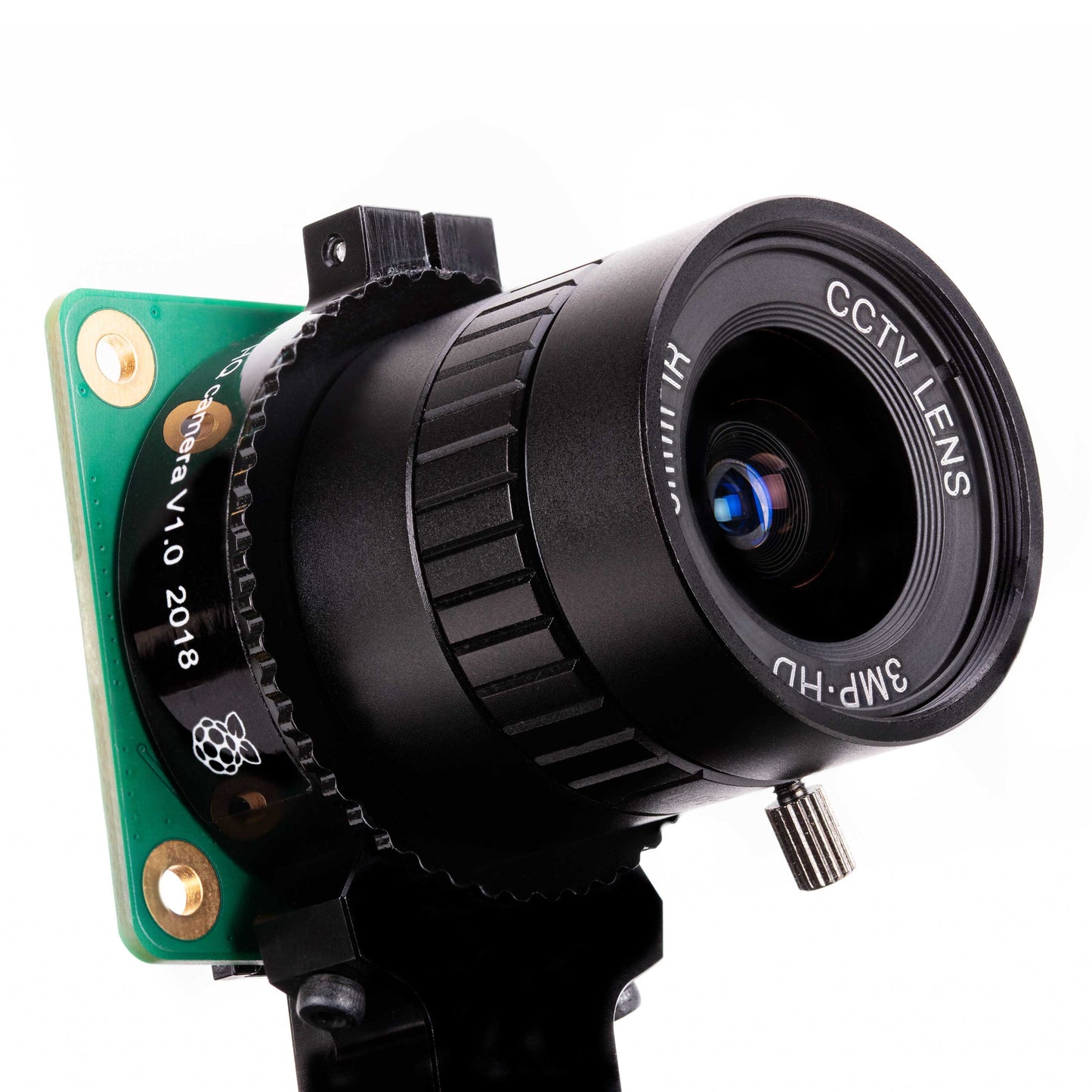

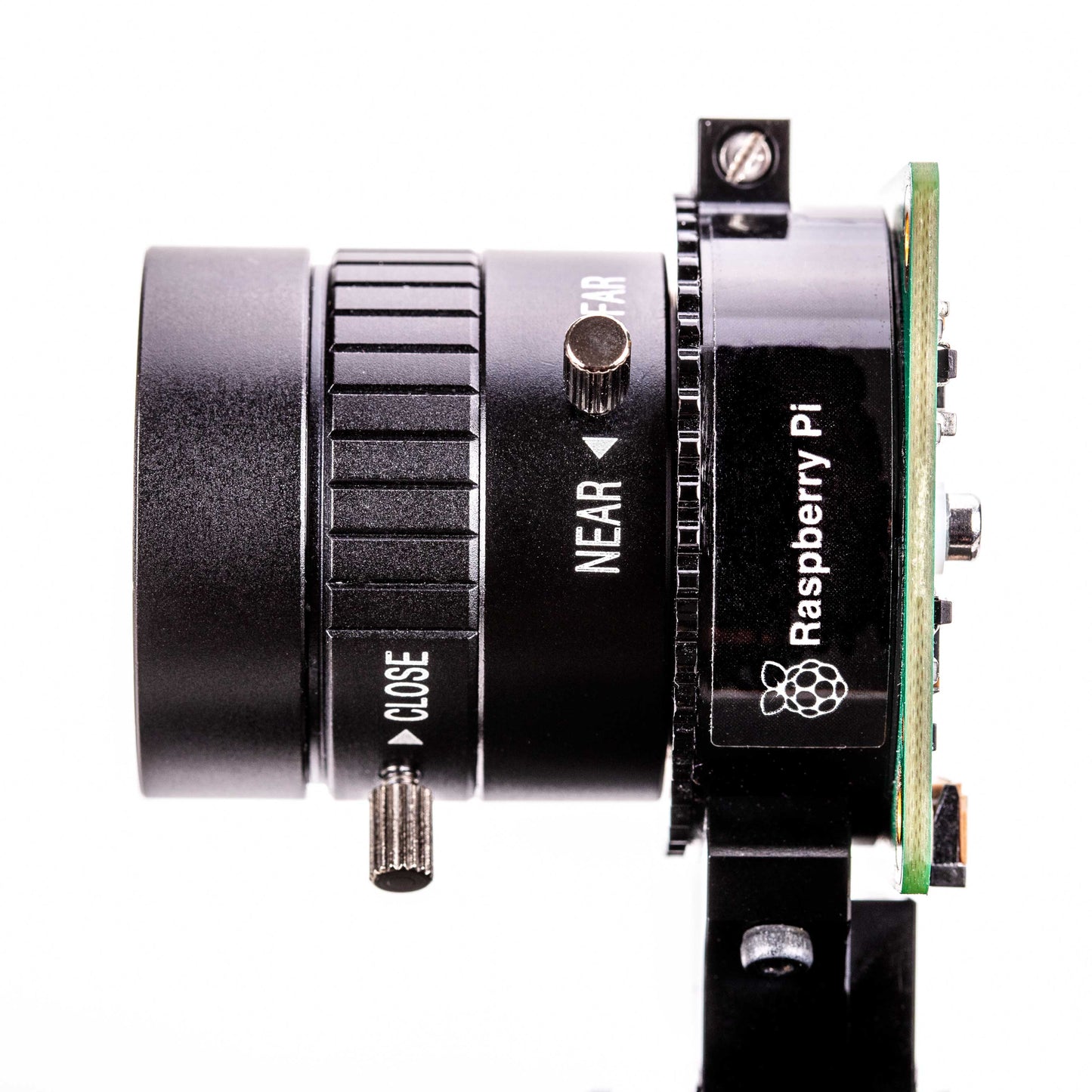

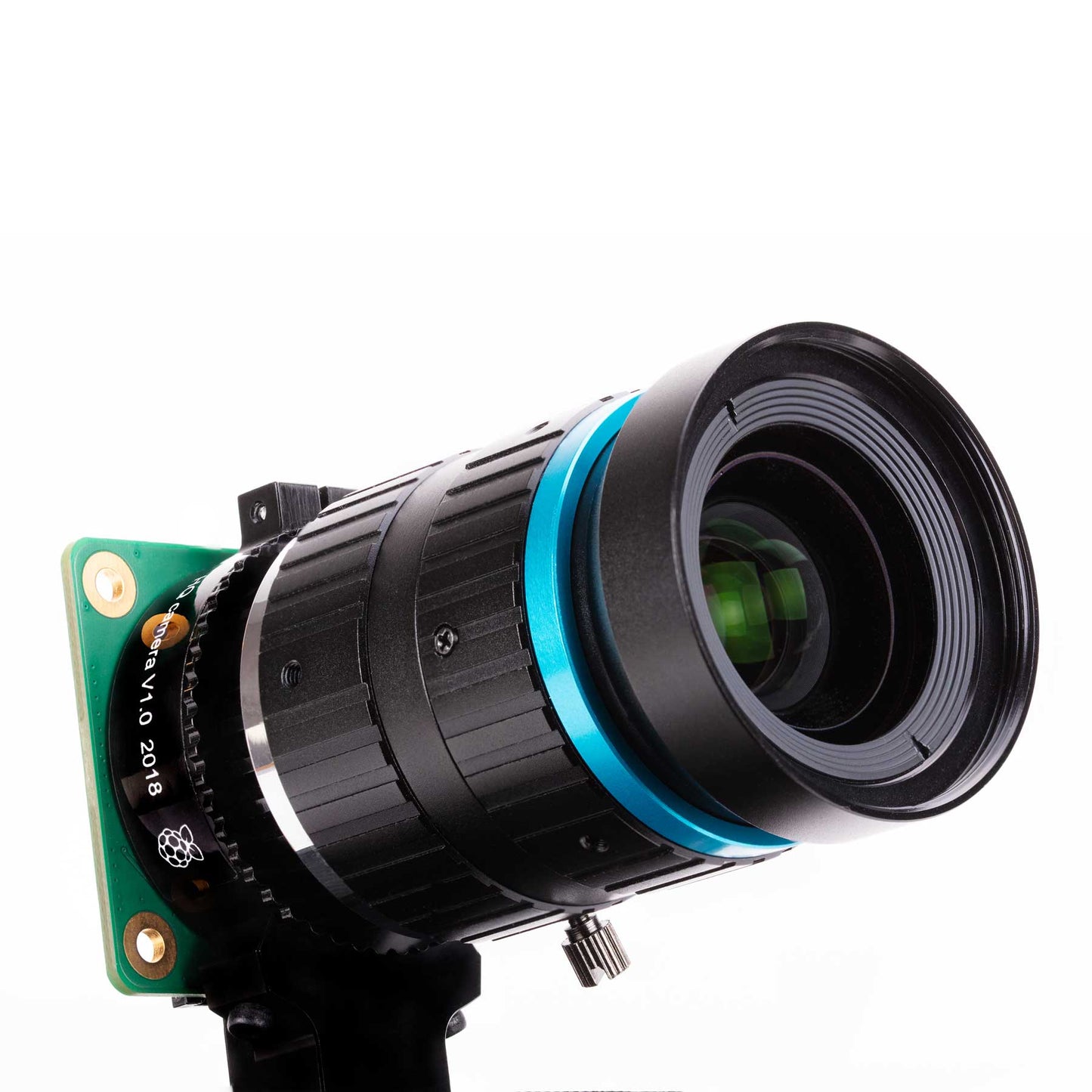

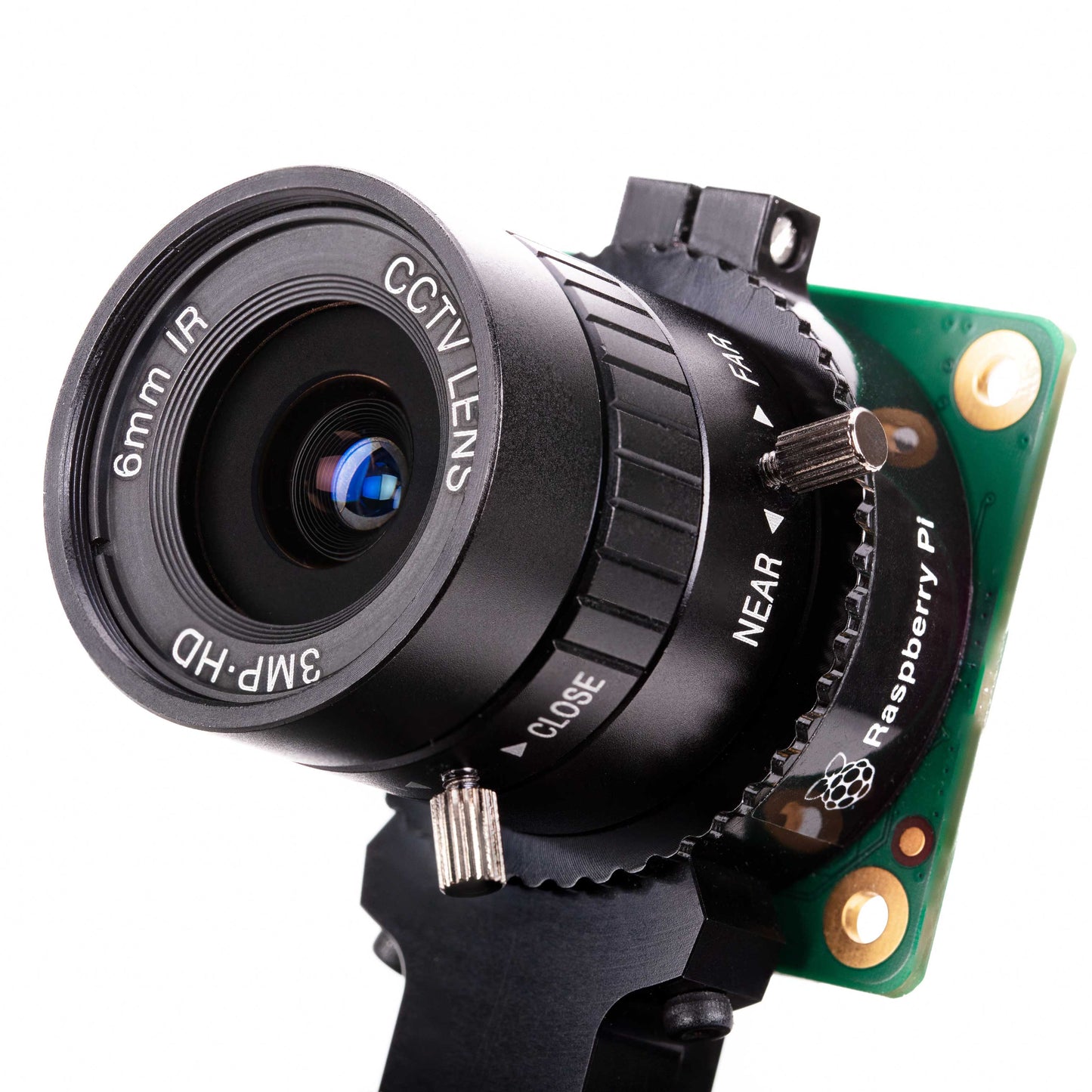

Raspberry Pi HQ Camera Kit

$75.00 USD
$75.00 USD
Sale Sold out
Shipping calculated at checkout.
Lens Type

Get ready to use the Raspberry Pi Camera HQ with the 6MM Lens or 16MM Lens.

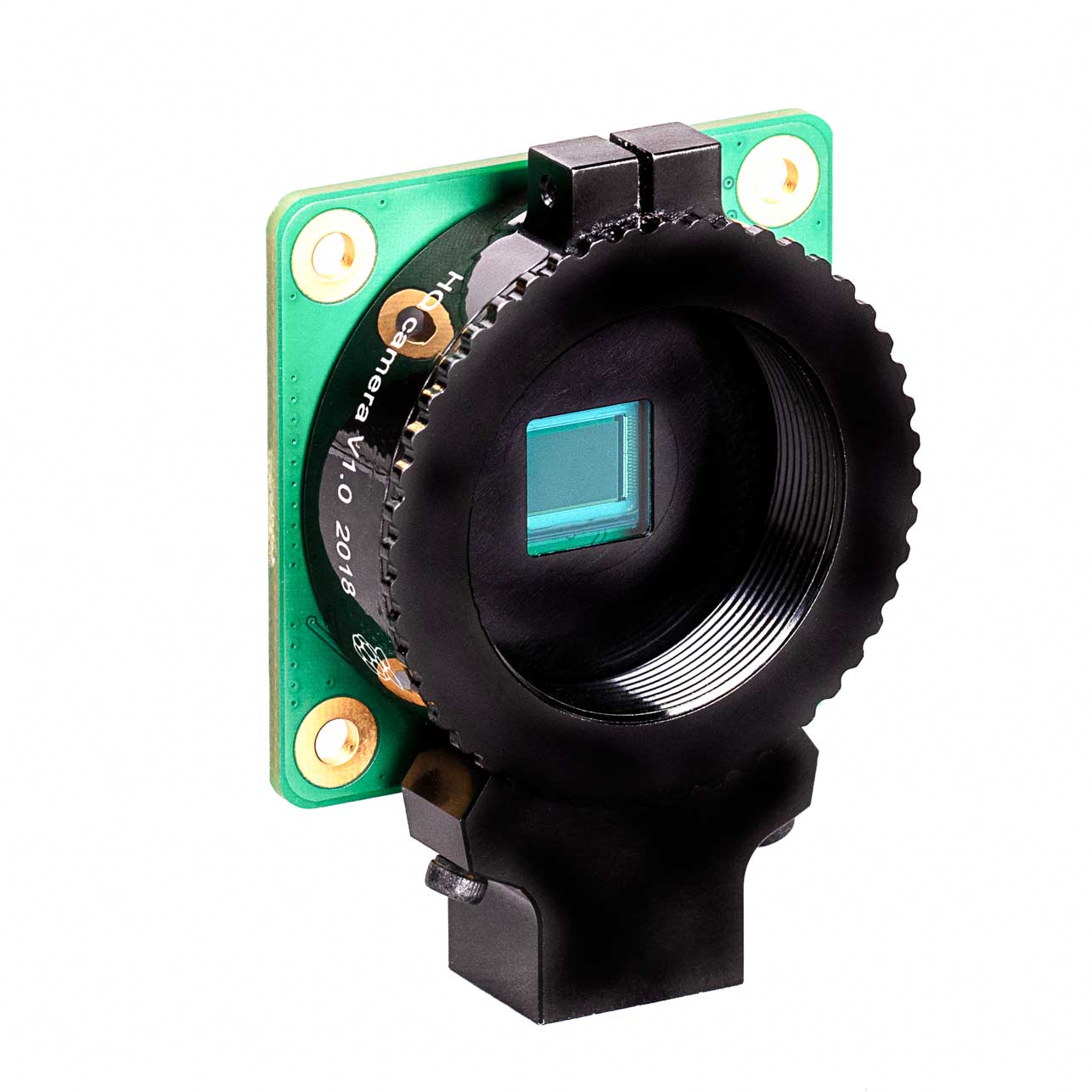

Raspberry Pi Camera HQ Specs

Sensor:

Sony IMX477R stacked, back-illuminated sensor
12.3 megapixels
7.9 mm sensor diagonal
1.55 ?m x 1.55 ?m pixel size
Output: RAW12/10/8, COMP8
Back Focus: Adjustable (12.5 mm - 22.4 mm)
Lens Standards: C-mount
CS-mount (C-CS adapter included)
IR cut filter: Integrated
Ribbon Cable Length: 200 mm
Tripod Mount: 1/4" - 20
Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Production Lifetime: The Raspberry Pi High Quality Camera will remain in production until at least January 2026

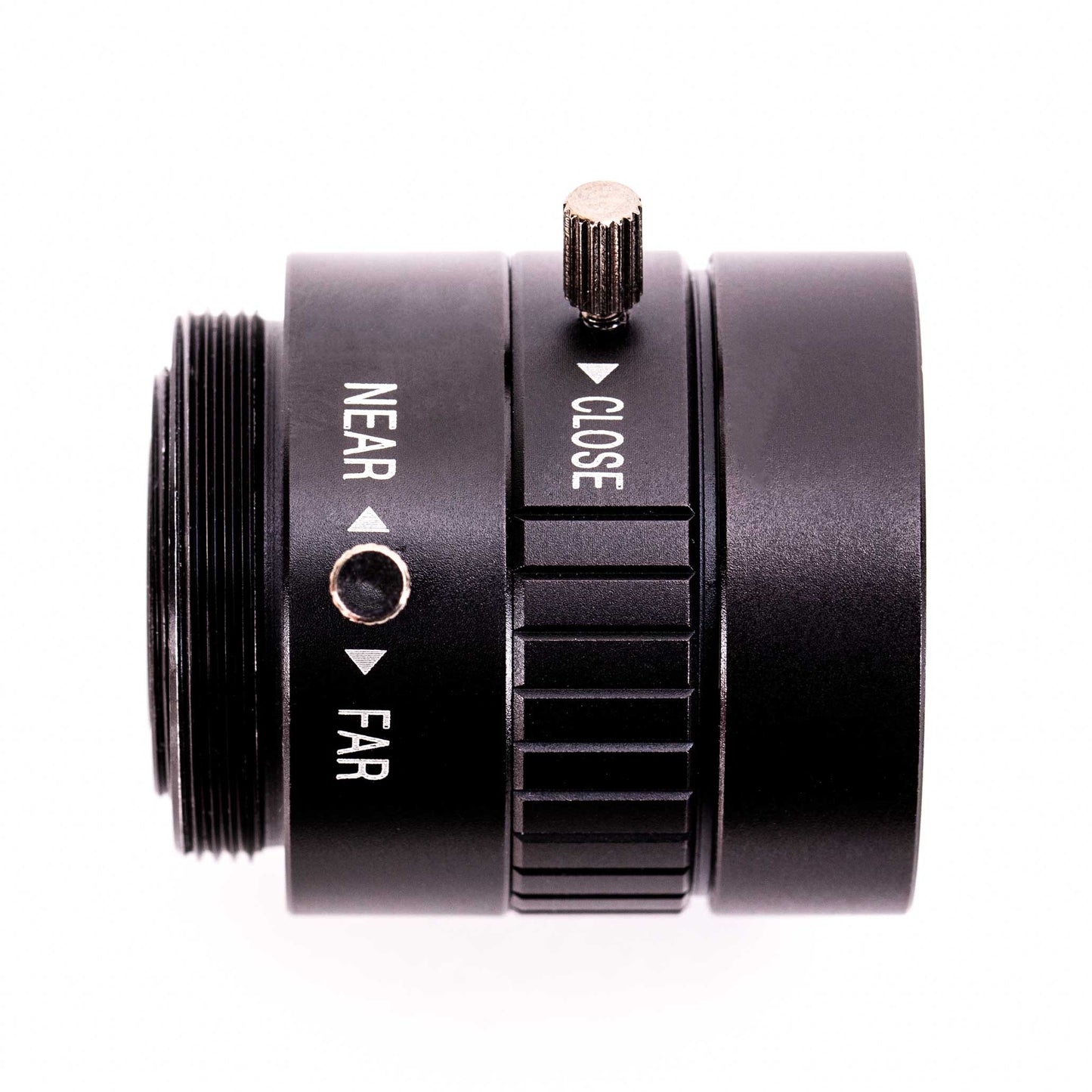

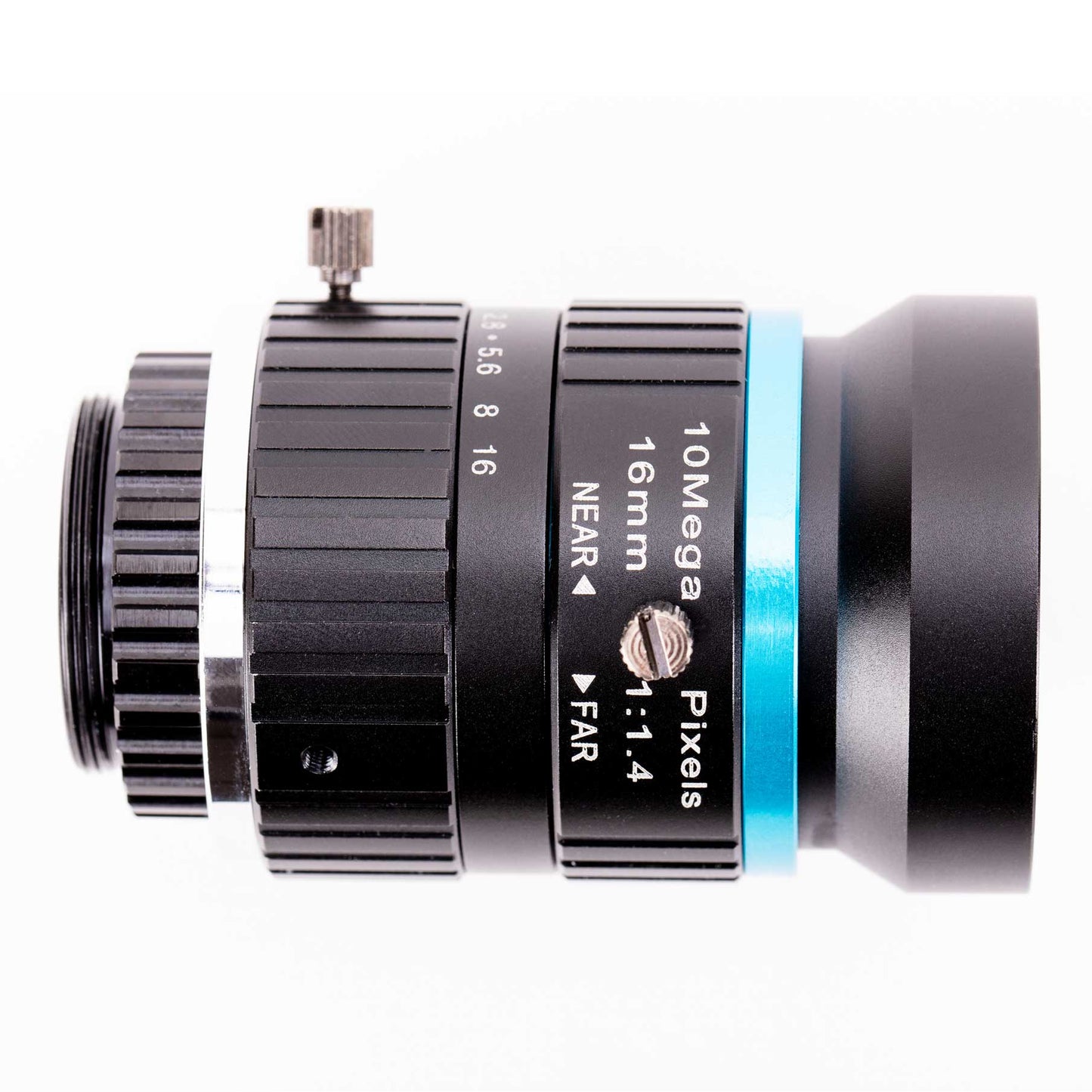

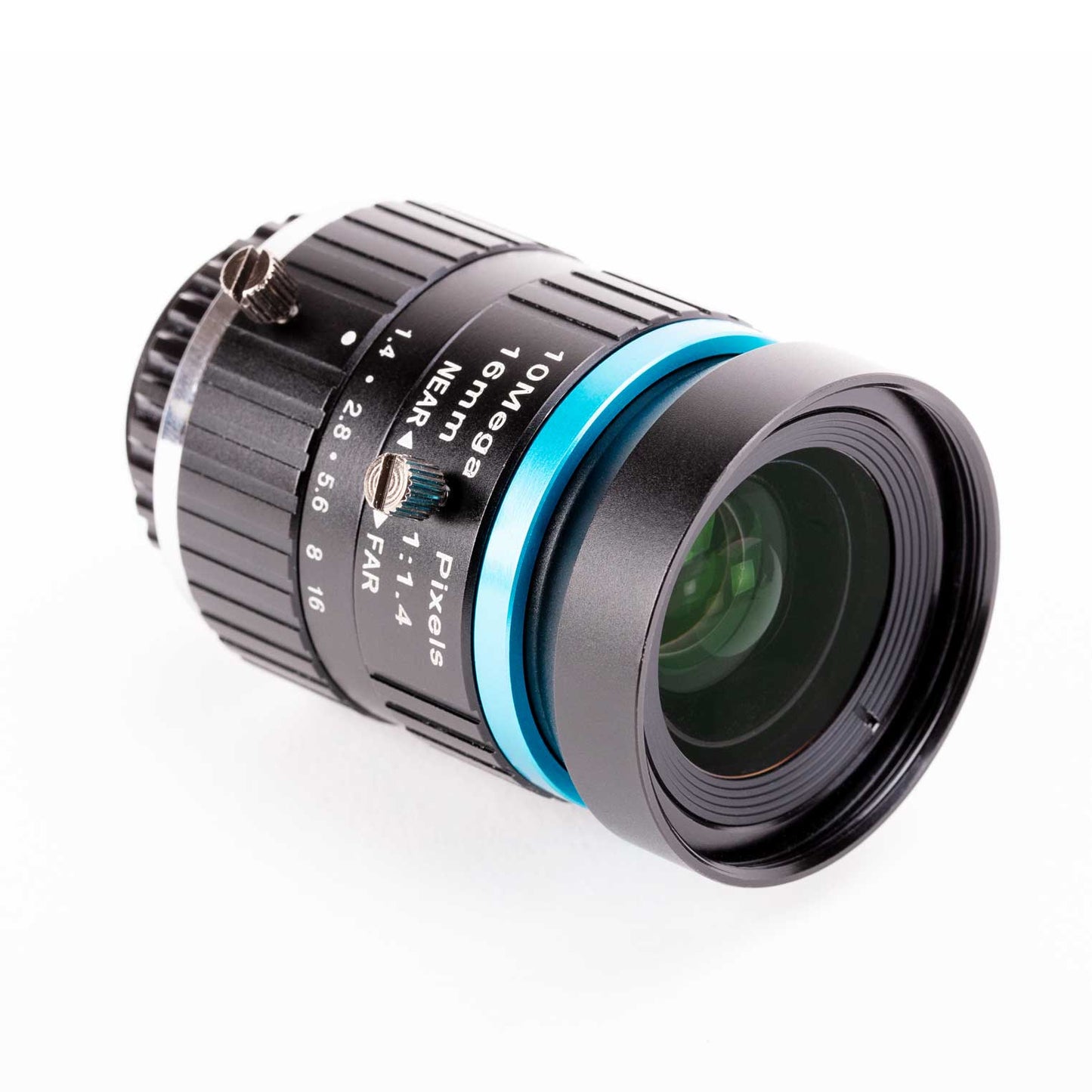

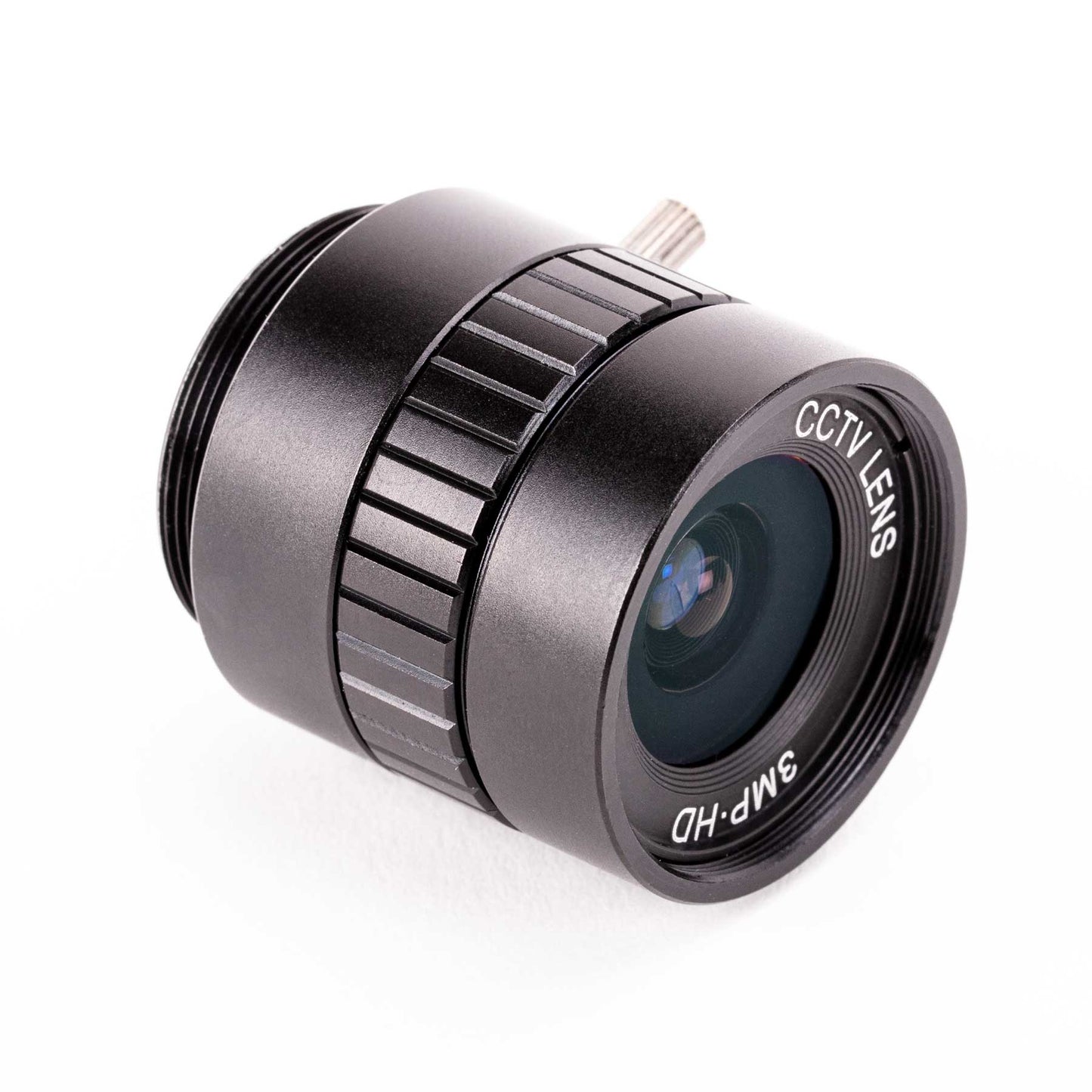

Lens Specs

Image Format 1/2" 1"
Focal Length 6mm 16mm
Resolution 3 MegaPixel 10 MegaPixel
Aperture F1. 2 F1. 4-16
Mount CS C
Feild Angle 63° 1" 44.6° x 33.6°
2/3" 30° x 23.2°
1/1.8" 24.7° x 18.6°
1/2" 21.8° x 16.4°
M.O.D. 0.2 mm 0.2 mm
Back Focal Length 7.53 mm 17.53 mm
Optical Length   67.53 mm
Dimension ?30 x 34 mm ?39 x 50 mm
Weight 53g 133.7g
Operation Manual Manual
