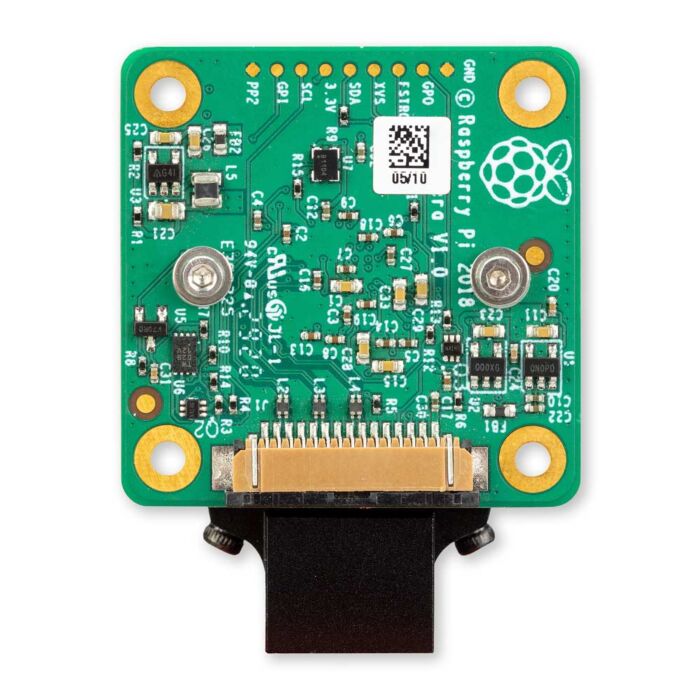

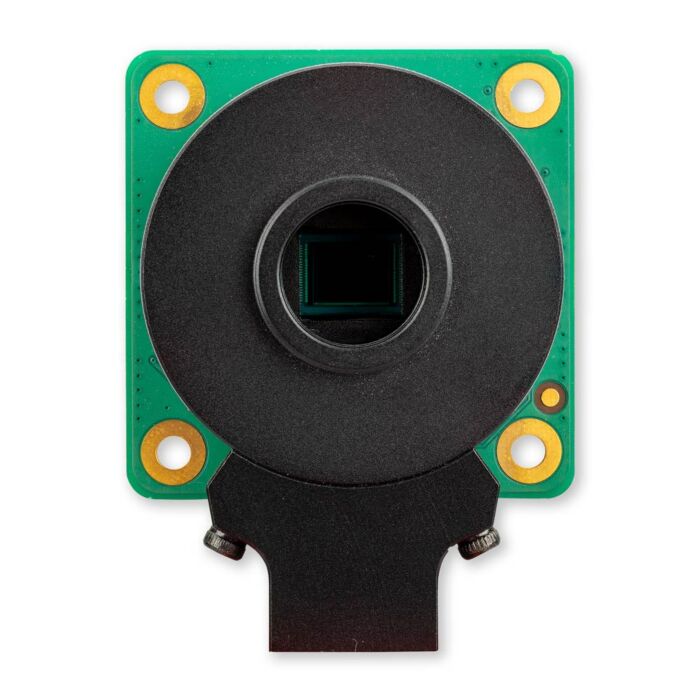

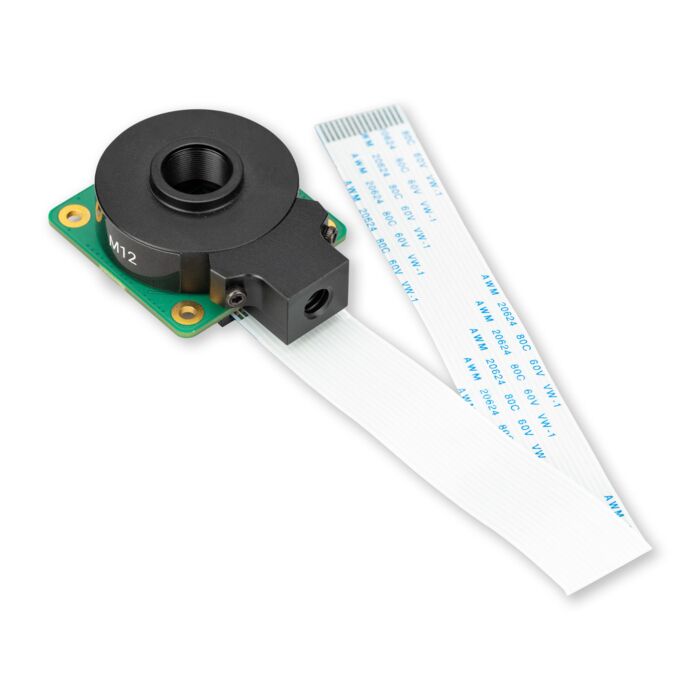

Raspberry Pi HQ Camera M12 Mount

The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance. The M12 Mount variant is designed to work with most interchangeable M12 lenses. Other lens form factors can be accommodated using third-party lens adapters.

Specification

Sensor: Sony IMX477R stacked, back-illuminated sensor

Resolution: 12.3 megapixels

Sensor size: 7.9mm sensor diagonal

Pixel size: 1.55μm × 1.55μm

Output: RAW12/10/8, COMP8

Back focus length of lens: 2.6mm–11.8mm (M12 Mount variant)

Lens sensor format: 1/2.3” (7.9mm) or larger

IR cut filter: Integrated; can be removed to enable IR sensitivity. *Modification is irreversible.

Ribbon cable length: 200mm

Tripod mount: 1/4”-20
