Raspberry Pi 5 Official M.2 HAT+

OFFICIAL RASPBERRY PI 5 M.2 HAT+

FEATURES

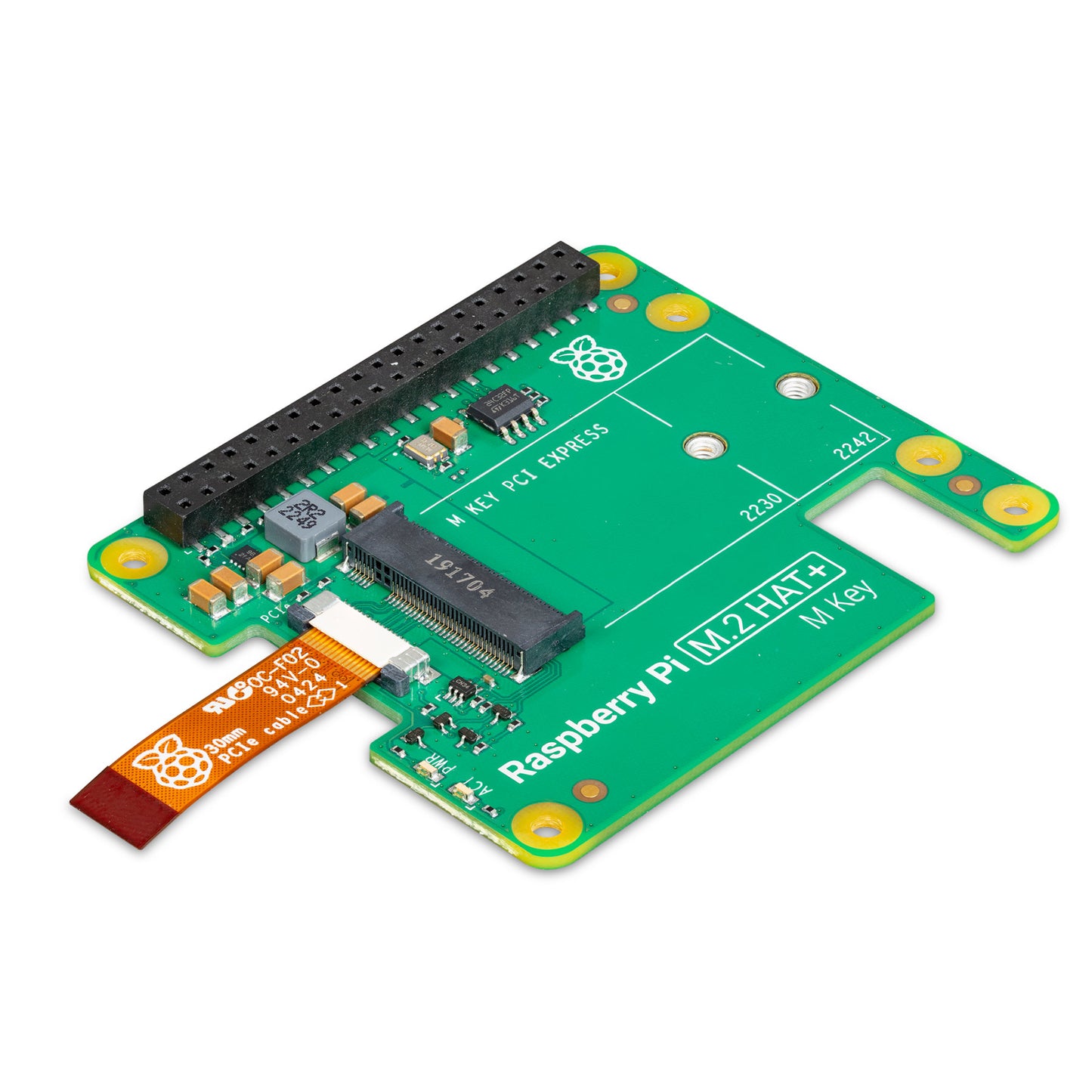

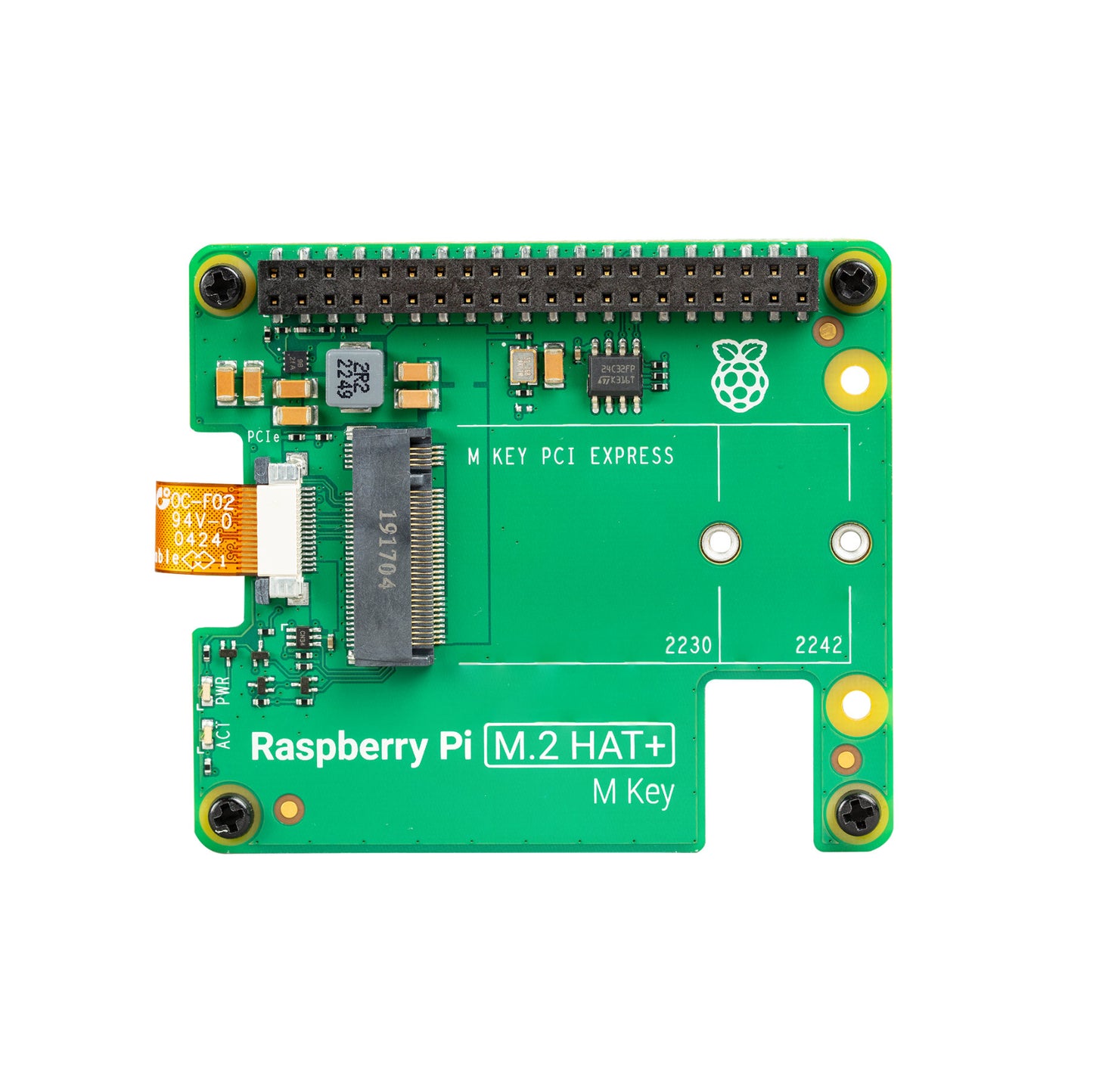

The M.2 HAT+ allows users to connect M.2-format PCIe and NVMe devices to the PCIe FPC connector on Raspberry Pi 5.

• 4 Gbits/s PCIe 2.0 interface provides fast (~450Mbytes/s) data transfer to and from NVMe SSD drives and other PCIe accessories
• Conforms to the HAT+ specification
• Automatically detected by the latest Raspberry Pi software/firmware

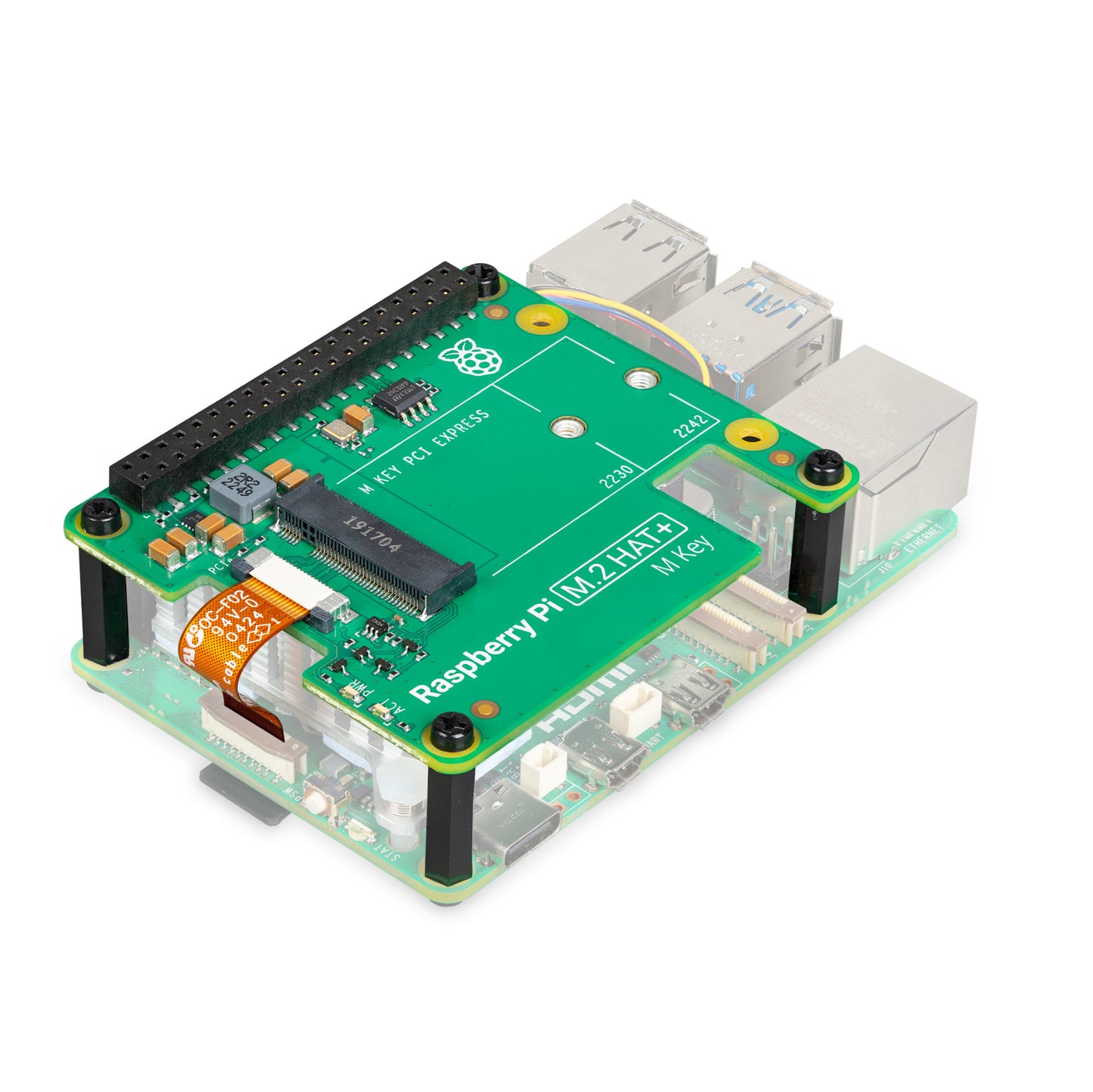

• Supplied with a 16mm stacking header and spacers/screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 with the Active Cooler in place

SPECIFICATIONS

Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

Supports devices that use the M.2 M key edge connector • Supports devices with the 2230 or 2242 form factor
Capable of supplying up to 3A to connected M.2 devices • Includes power and activity LEDs

Conforms to the Raspberry Pi HAT+ specification

Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
