Raspberry Pi Foundation
Raspberry Pi HQ Camera Kit
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

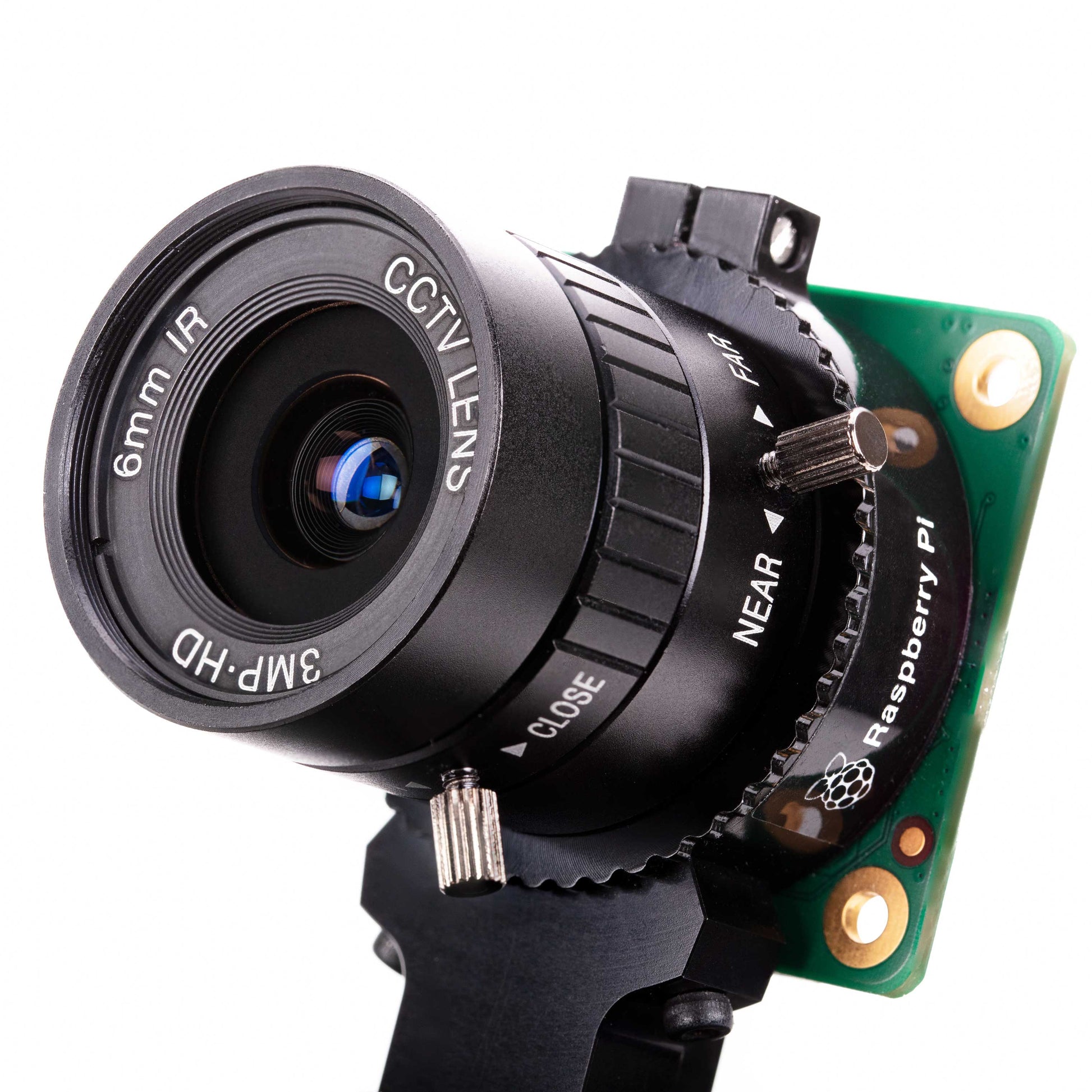

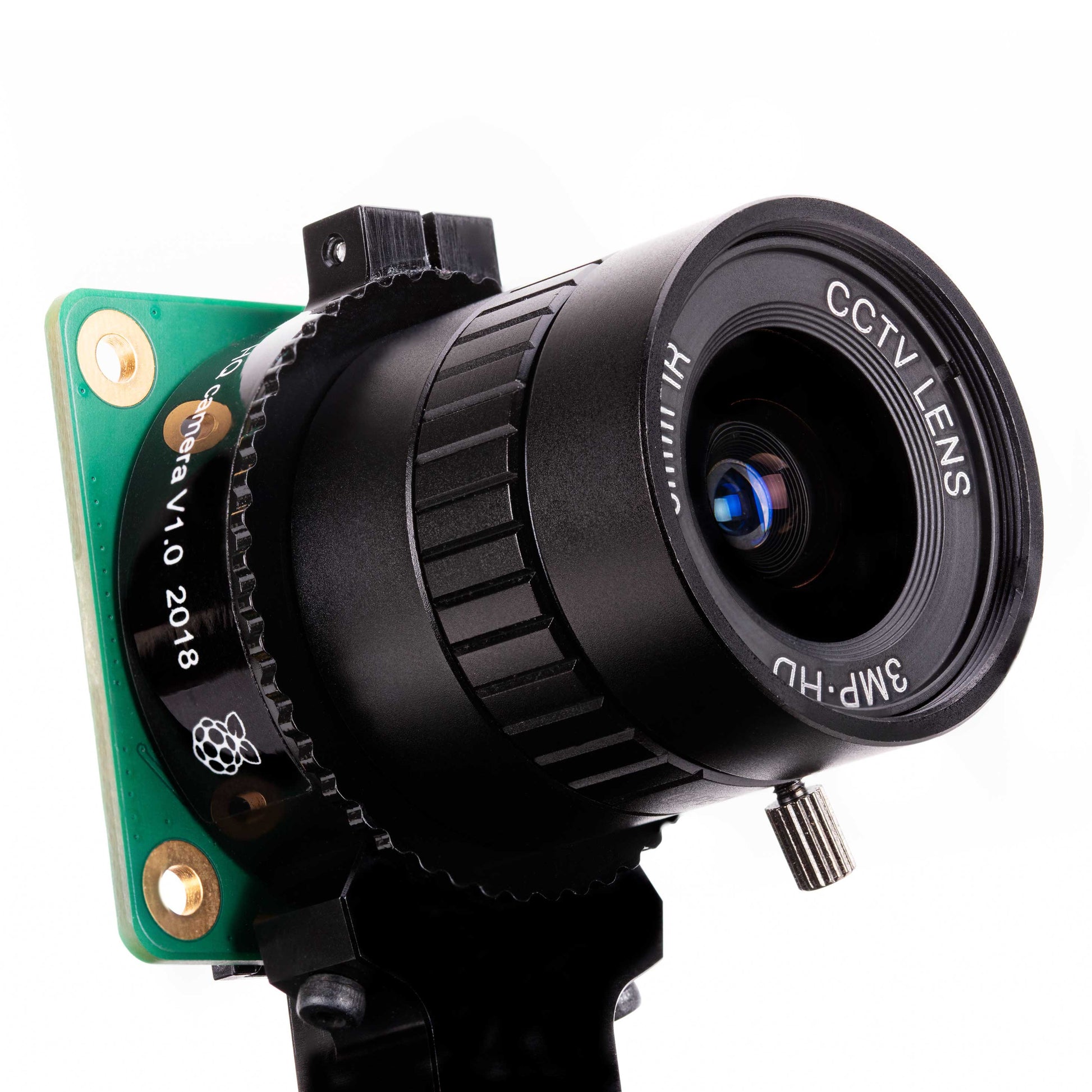

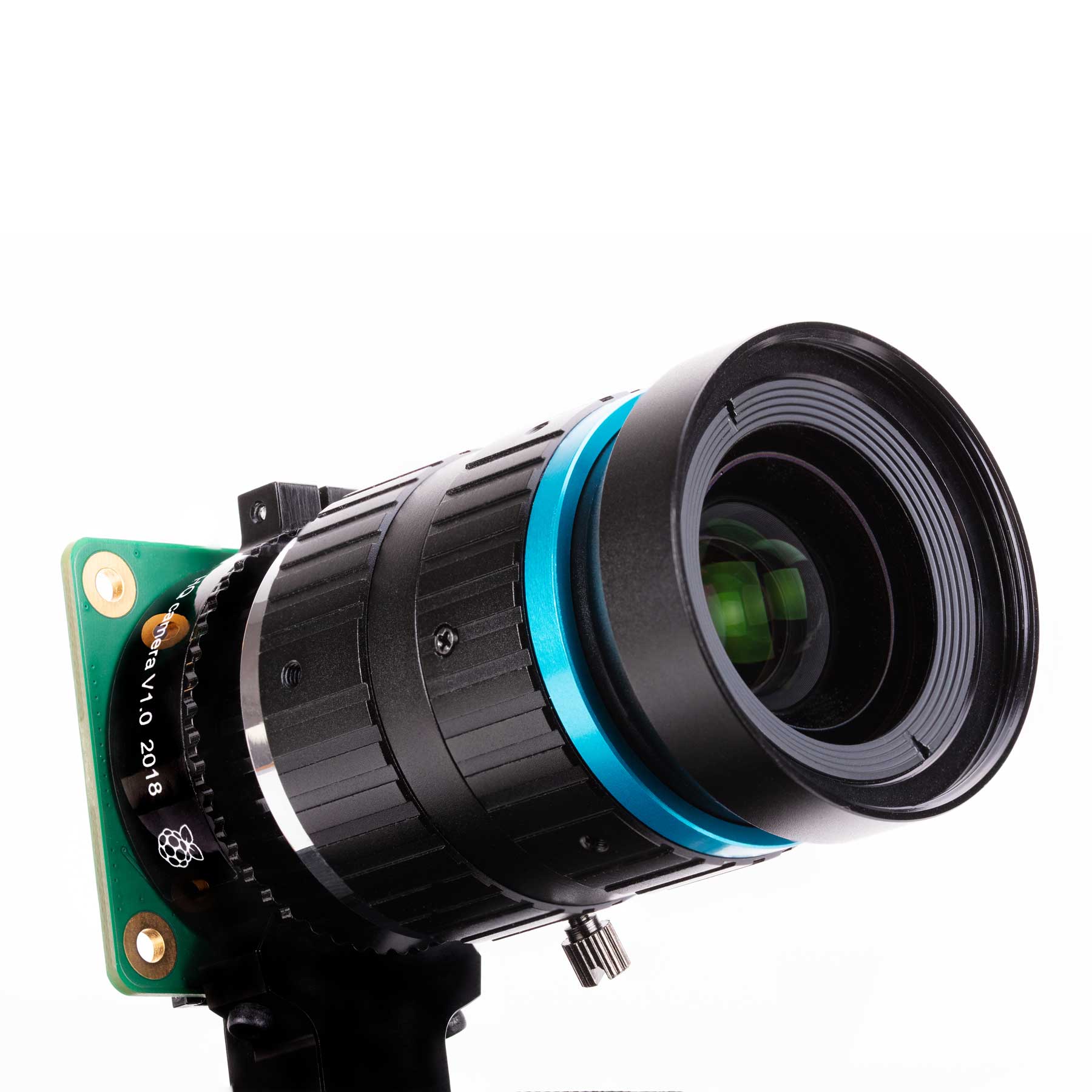

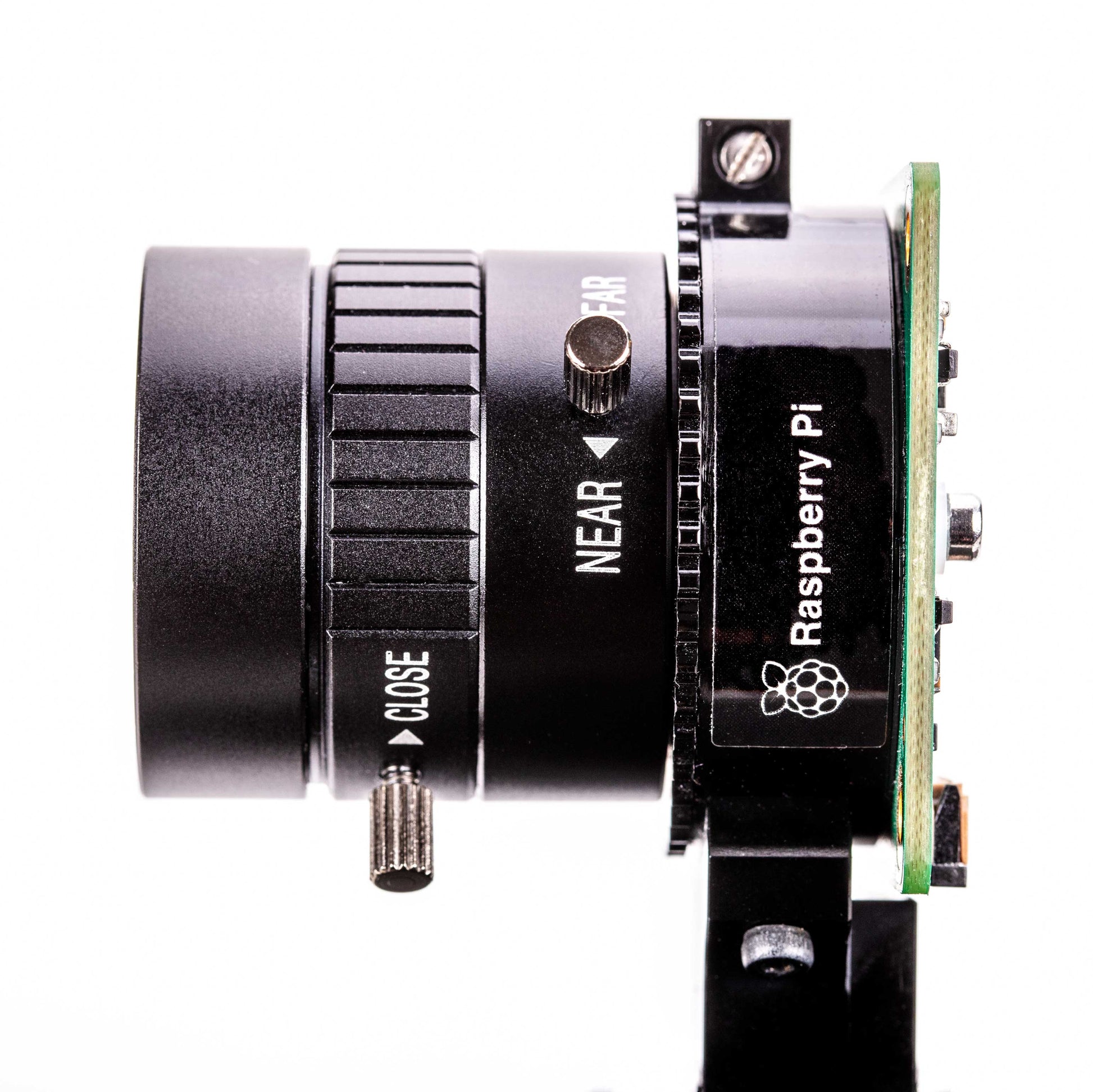

Get ready to use the Raspberry Pi Camera HQ with the 6MM Lens or 16MM Lens.

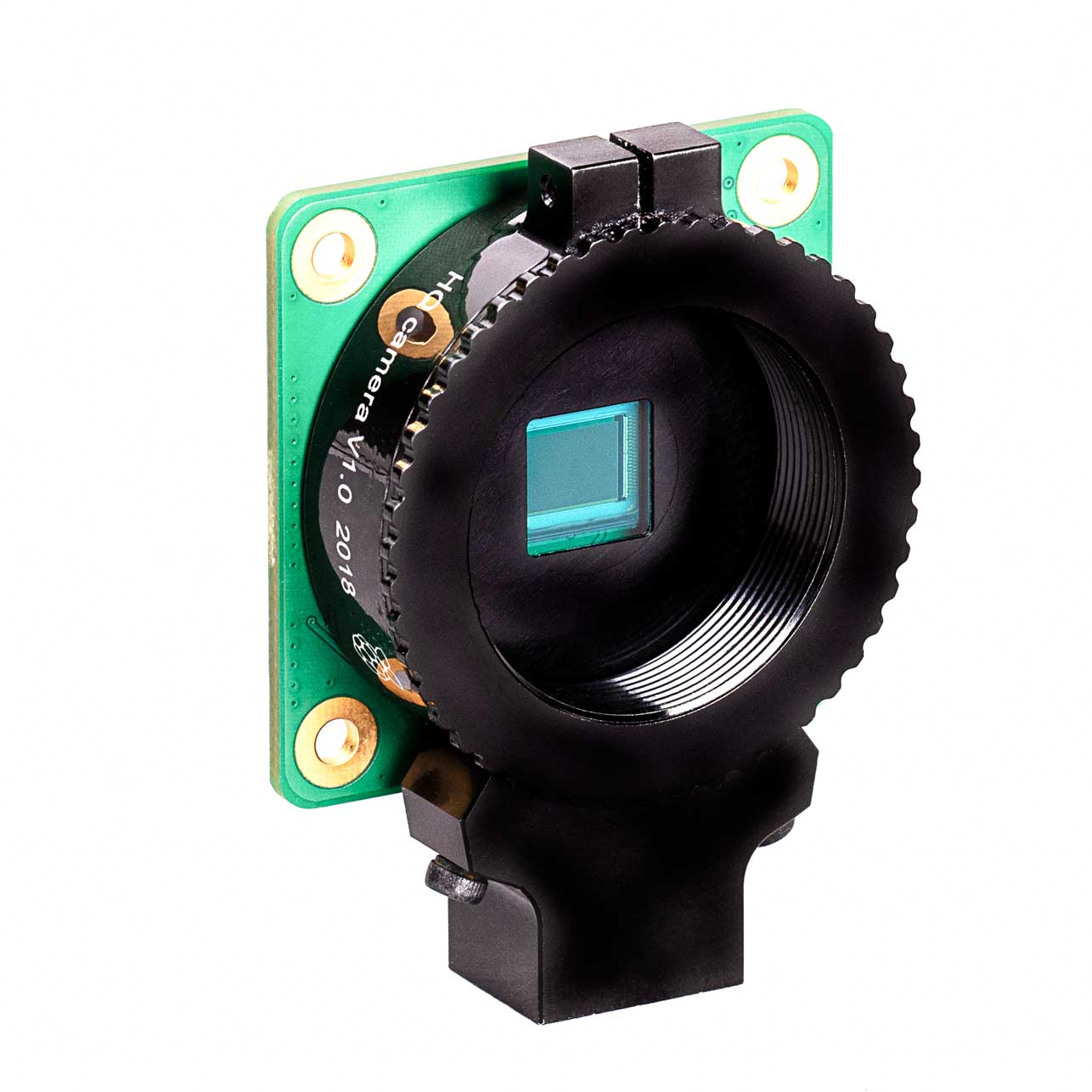

Raspberry Pi Camera HQ Specs
Sensor: |
Sony IMX477R stacked, back-illuminated sensor |
Output: | RAW12/10/8, COMP8 |
Back Focus: | Adjustable (12.5 mm - 22.4 mm) |
Lens Standards: | C-mount CS-mount (C-CS adapter included) |
IR cut filter: | Integrated |
Ribbon Cable Length: | 200 mm |
Tripod Mount: | 1/4" - 20 |
Compliance: | FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
Production Lifetime: | The Raspberry Pi High Quality Camera will remain in production until at least January 2026 |

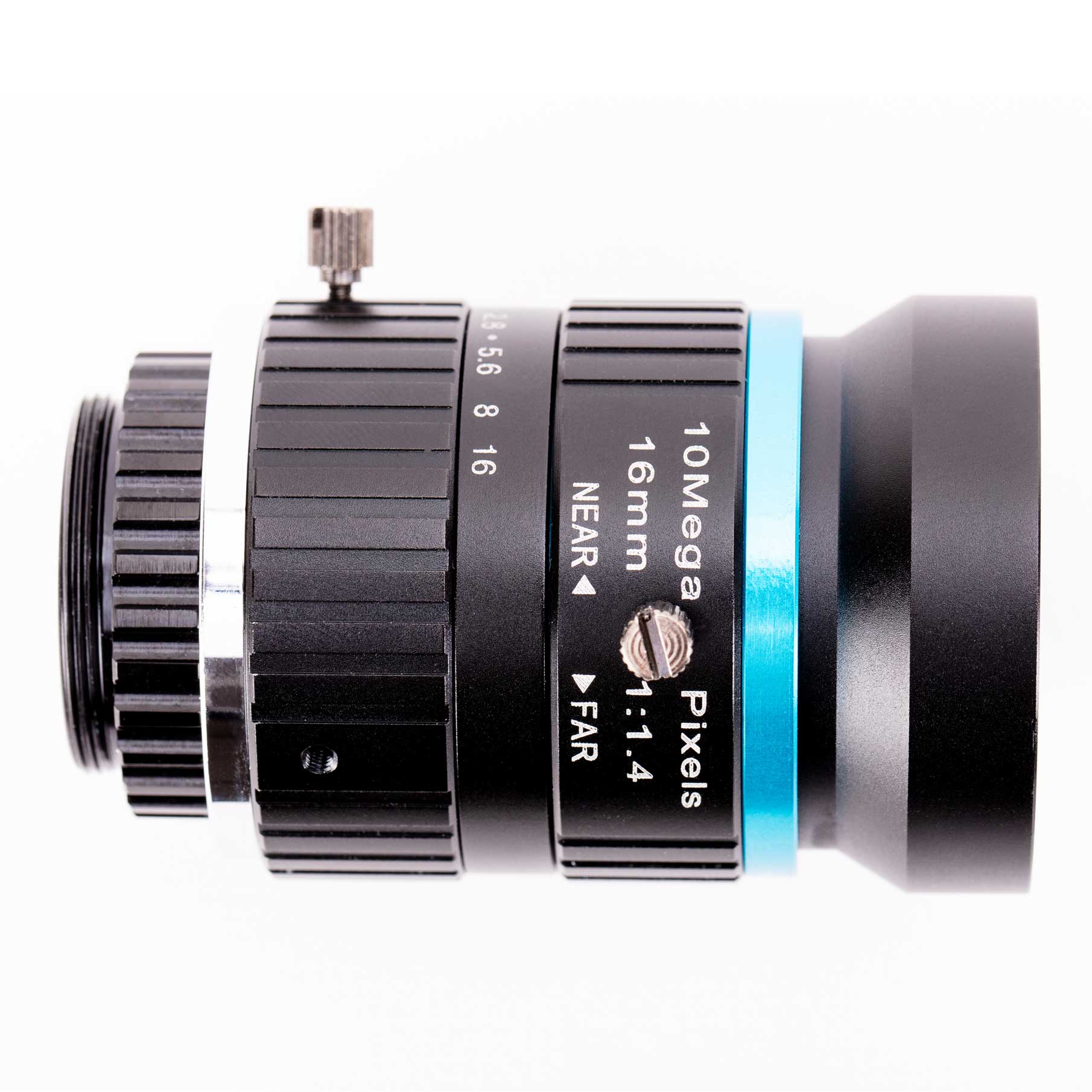

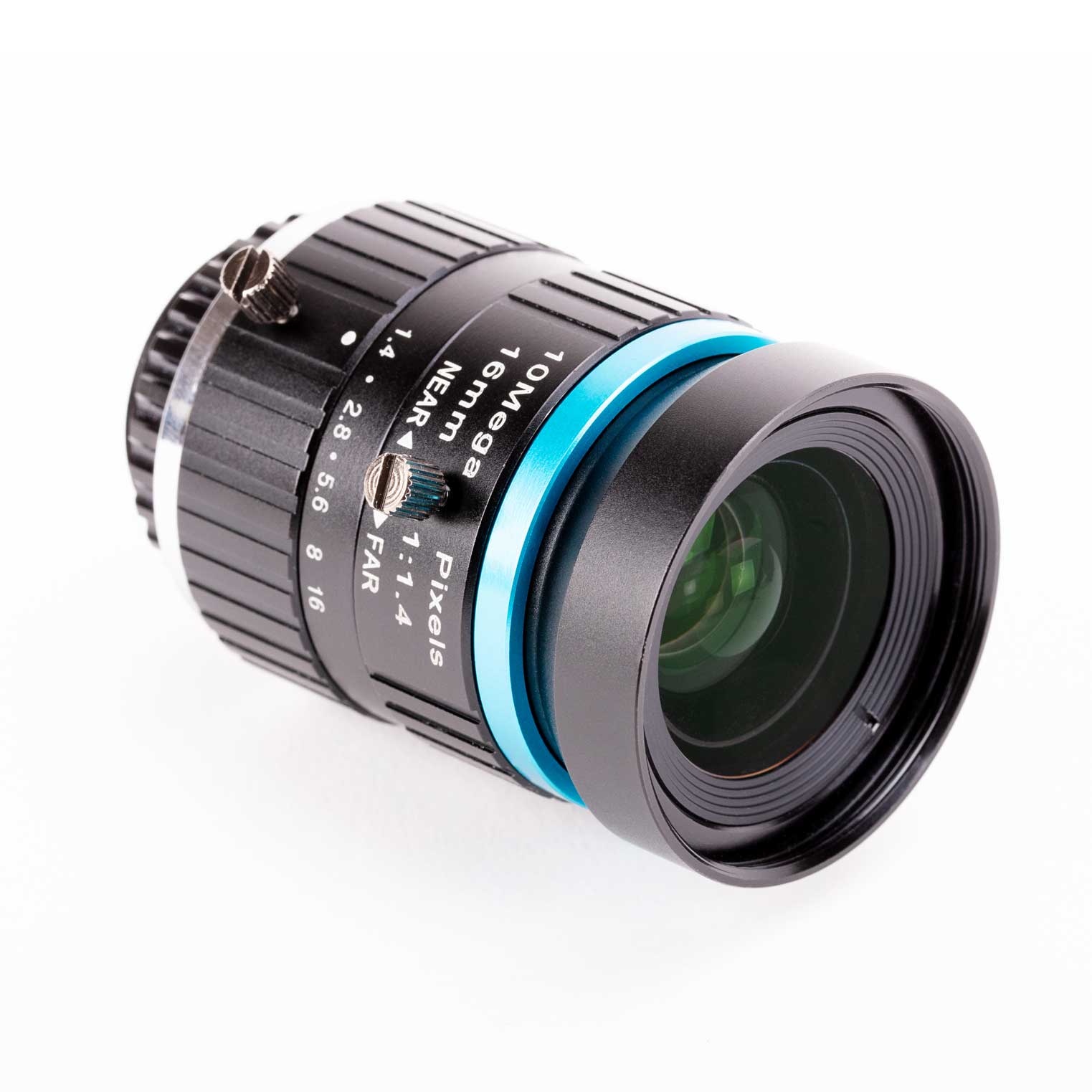

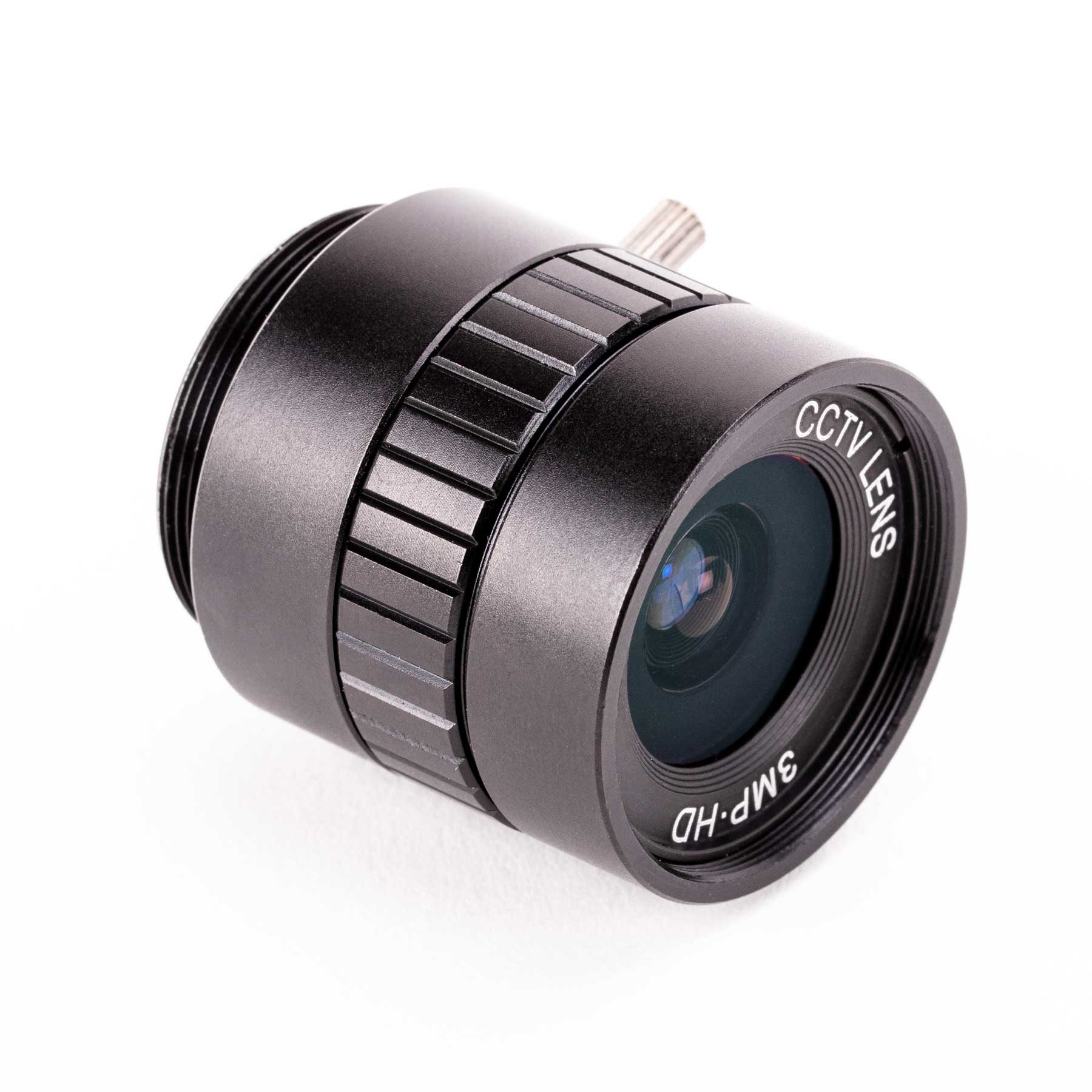

Lens Specs
Image Format | 1/2" | 1" | |
Focal Length | 6mm | 16mm | |
Resolution | 3 MegaPixel | 10 MegaPixel | |
Aperture | F1. 2 | F1. 4-16 | |
Mount | CS | C | |
Feild Angle | 63° | 1" | 44.6° x 33.6° |
2/3" | 30° x 23.2° | ||
1/1.8" | 24.7° x 18.6° | ||
1/2" | 21.8° x 16.4° | ||
M.O.D. | 0.2 mm | 0.2 mm | |
Back Focal Length | 7.53 mm | 17.53 mm | |
Optical Length | 67.53 mm | ||
Dimension | ?30 x 34 mm | ?39 x 50 mm | |
Weight | 53g | 133.7g | |
Operation | Manual | Manual |
